Big Banger LED Light Pod: NCS Amber Spot Beam (BAF119)

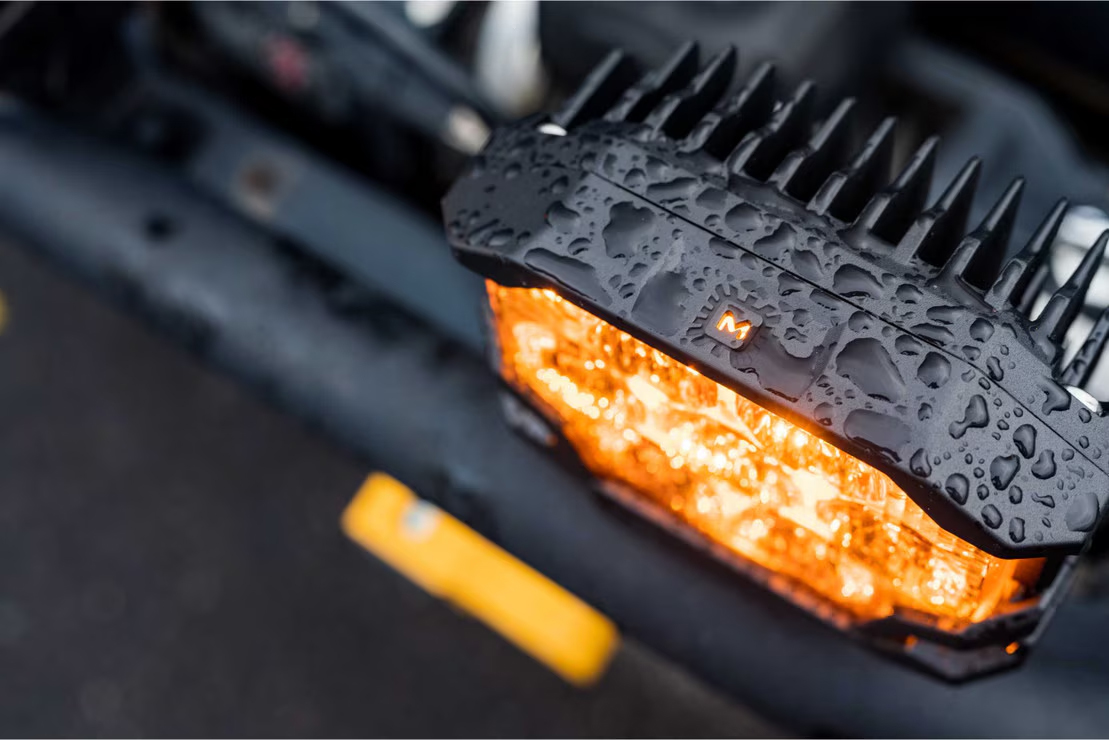

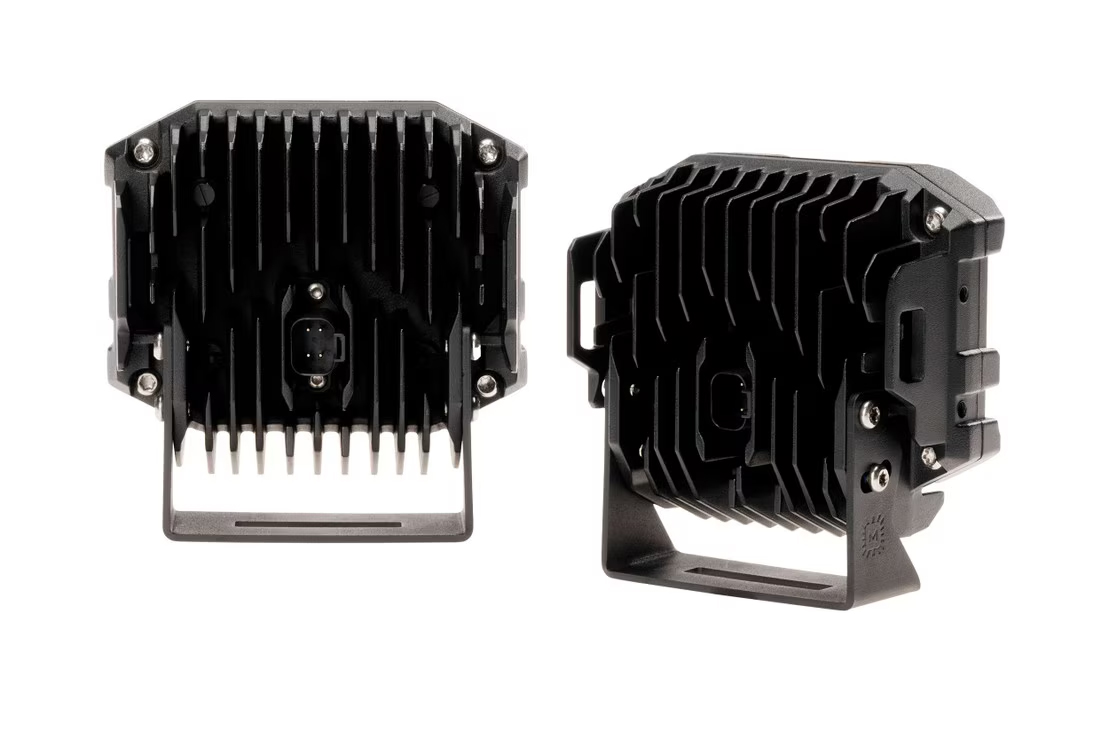

Introducing the Morimoto BigBanger LED Pods: a revolution in off-road lighting. These powerful pods redefine performance with their NCS Spot Beam pattern. The NCS Spot delivers an intense 5-degree hot spot, complemented by a 14H x 4C degree flood beam, ensuring exceptional long-range visibility. Built for excellence, these pods feature modern, lumen-dense LEDs from Nichia and Osram, optimized with LucidShape technology. With two performance tiers, versatile beam patterns (spot or combo), and two color options (white or yellow), the BigBanger suits even the most demanding needs. But it’s not just about performance; these pods are designed for durability. They incorporate a copper DTP PCB for efficient heat transfer, an electroplated cast aluminum shell for longevity, and IP69K-rated components for weather resistance. Illuminate your path and conquer the night with Morimoto’s BigBanger LED Pods—reliable, powerful, and built to outshine the competition.

What’s Includes

• LED Pod: 1x Morimoto BigBanger NCS Spot (Sold Individually)
• Bracket: 1x Universal U-Shape Mount
• Hardware: Complete pack (Stainless Steel)

Not Included (Optional)

• Optional Wiring: 1x Morimoto Switched Relay Harness or Deutsch DT Pigtail

Features:

Specs:

• Note: These specifications are per pod / each!

• Intensity (White): 425,000 Cd (4,250 lux @ 10m)

• Intensity (Yellow): 290,000 Cd (2,900 lux @ 10m)

• Input Voltage: 9-18V DC

• Current: 2.74A @ 13.5V DC (Stabilized), 3.33A @ 13.5V DC (Startup)

• Peak Luminosity (raw): 3,150lm

• Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D

• Light Source: 7x Nichia NCSY131F or Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight)

• Input: Integrated Deutsch DT 4-Pin

• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
