Winch, 9500 LBS, Synthetic Rope, Waterproof (15100.06)

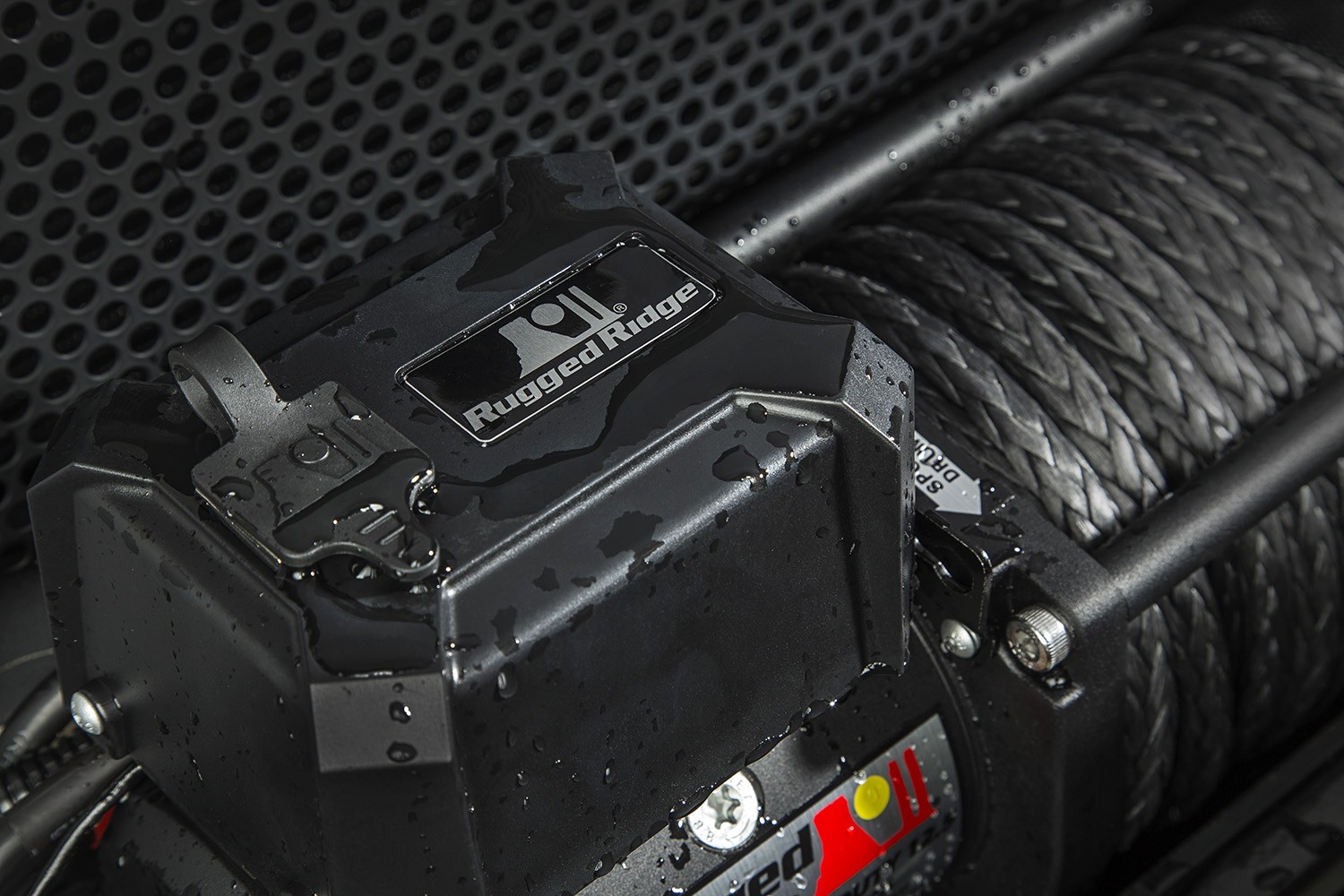

The Nautic 9,500 lbs. Performance winches feature a durable 6.6 HP series wound motor for long life and

impressive pulling power with an innovative X-braced gearbox hhousing and motor cap for increased

strength. Solenoid, motor and gearbox achieve an IP67 waterproof rating so you can count on consistent

performance regardless of the conditions. The tough 3-stage planetary gear box features a 172.8:1 gear

ratio, delivering power and reliability. Includes 100’ of 23/64” synthetic rope and a powder-coated latch

hook. Automatic load holding brake system (in the drum) provides exceptional control. Our Nautic

Performance Series winches include a durableh aluminum Hawse-style fairlead and tough, stainless

hardware is used on the body of the winch to resist rust. Each Nautic Series winch includes a durable 12′

all-weather cable remote controller and sturdy solenoid box that can be mounted in multiple positions and angles to accommodate various bumper configurations.

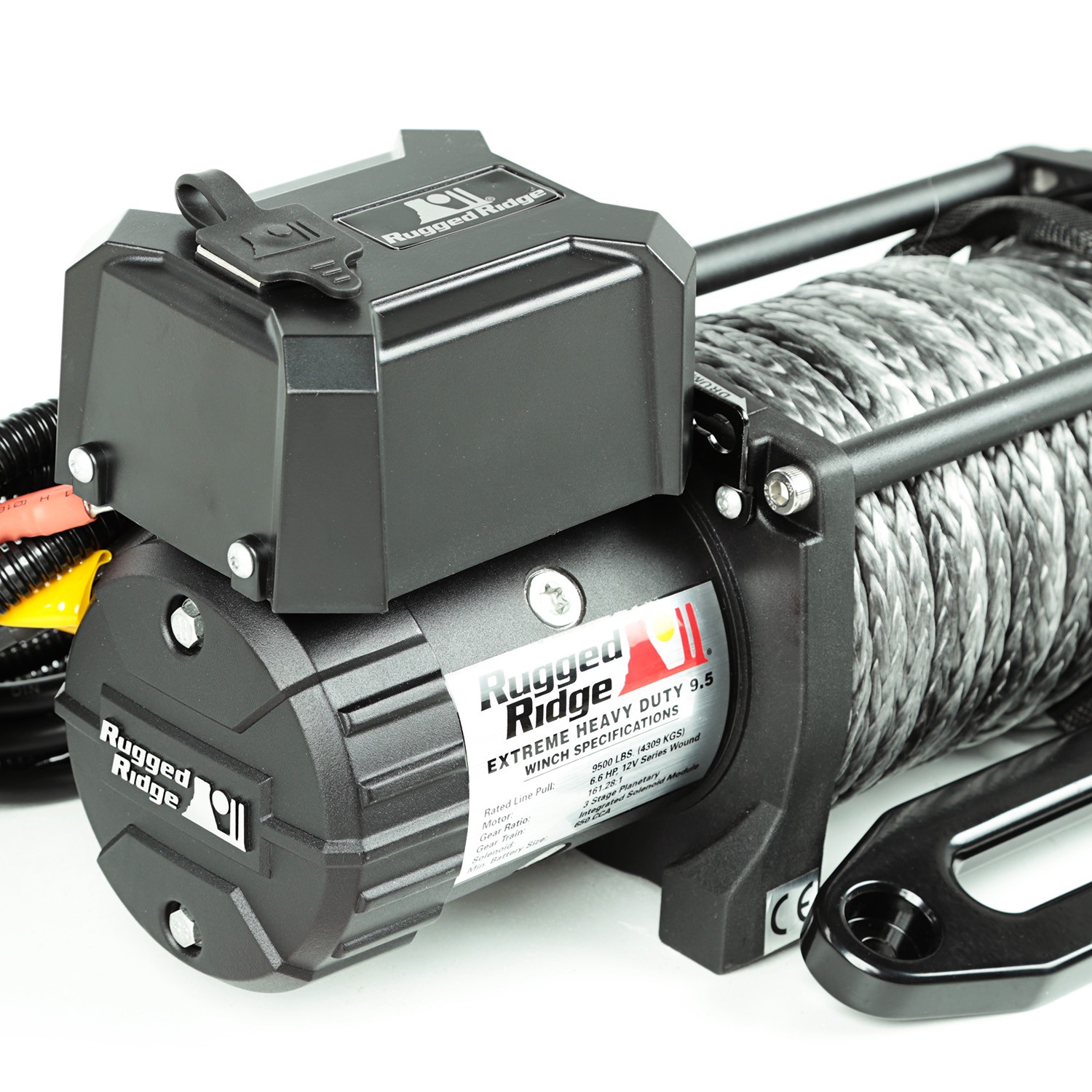

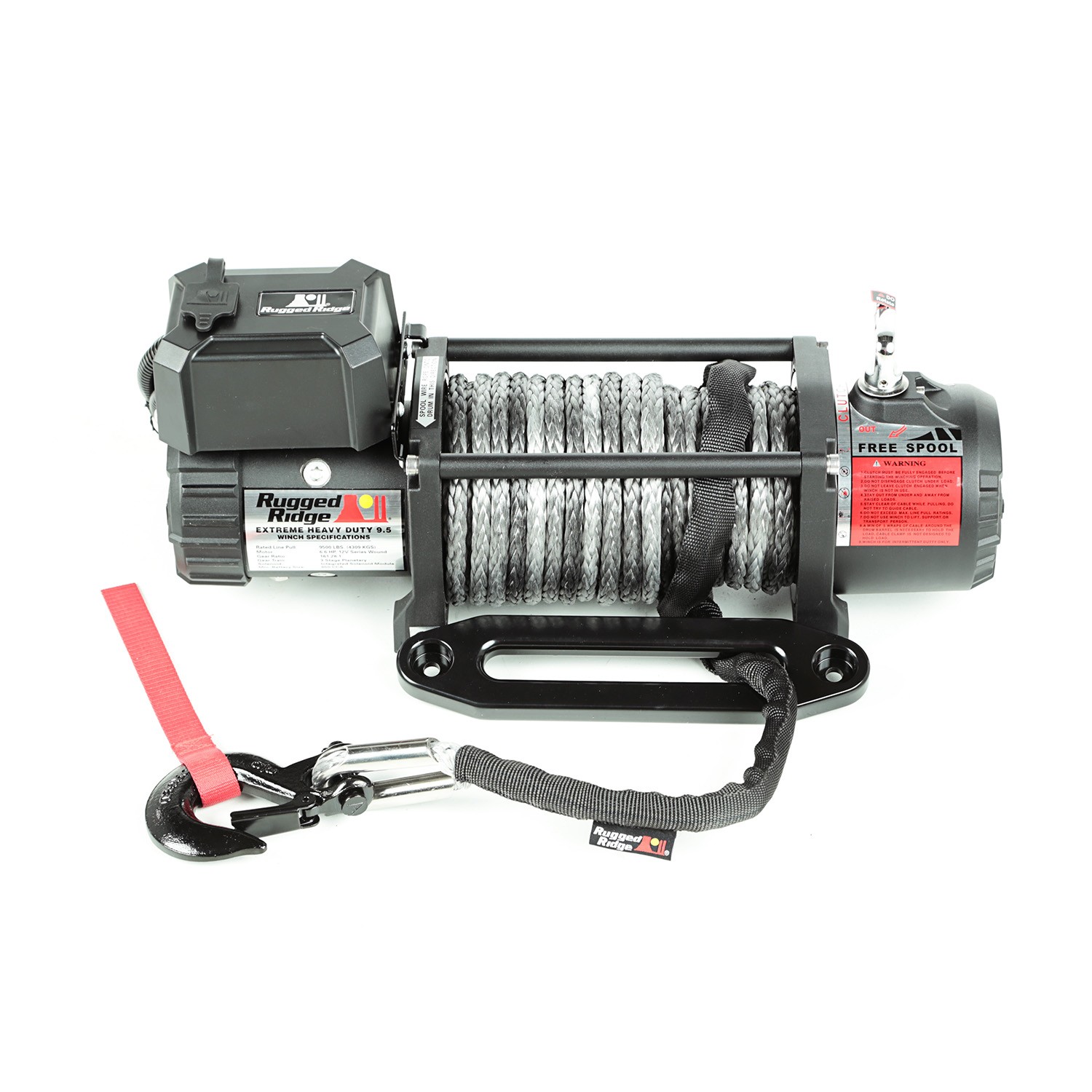

The Rugged Ridge Nautic 9,500 lb winch (15100.06)

The Rugged Ridge Nautic 9,500 lb winch (15100.06) is a high-performance electric recovery tool designed

for off-road enthusiasts who require strength, durability, and reliability in extreme environments. Built to

handle demanding recovery situations, this winch combines powerful pulling capacity with advanced

waterproofing and modern materials, making it an excellent choice for trucks, SUVs, and 4×4 vehicles.

With a rated line pull of 9,500 lbs (4,309 kg), the winch provides sufficient power for most mid-size and

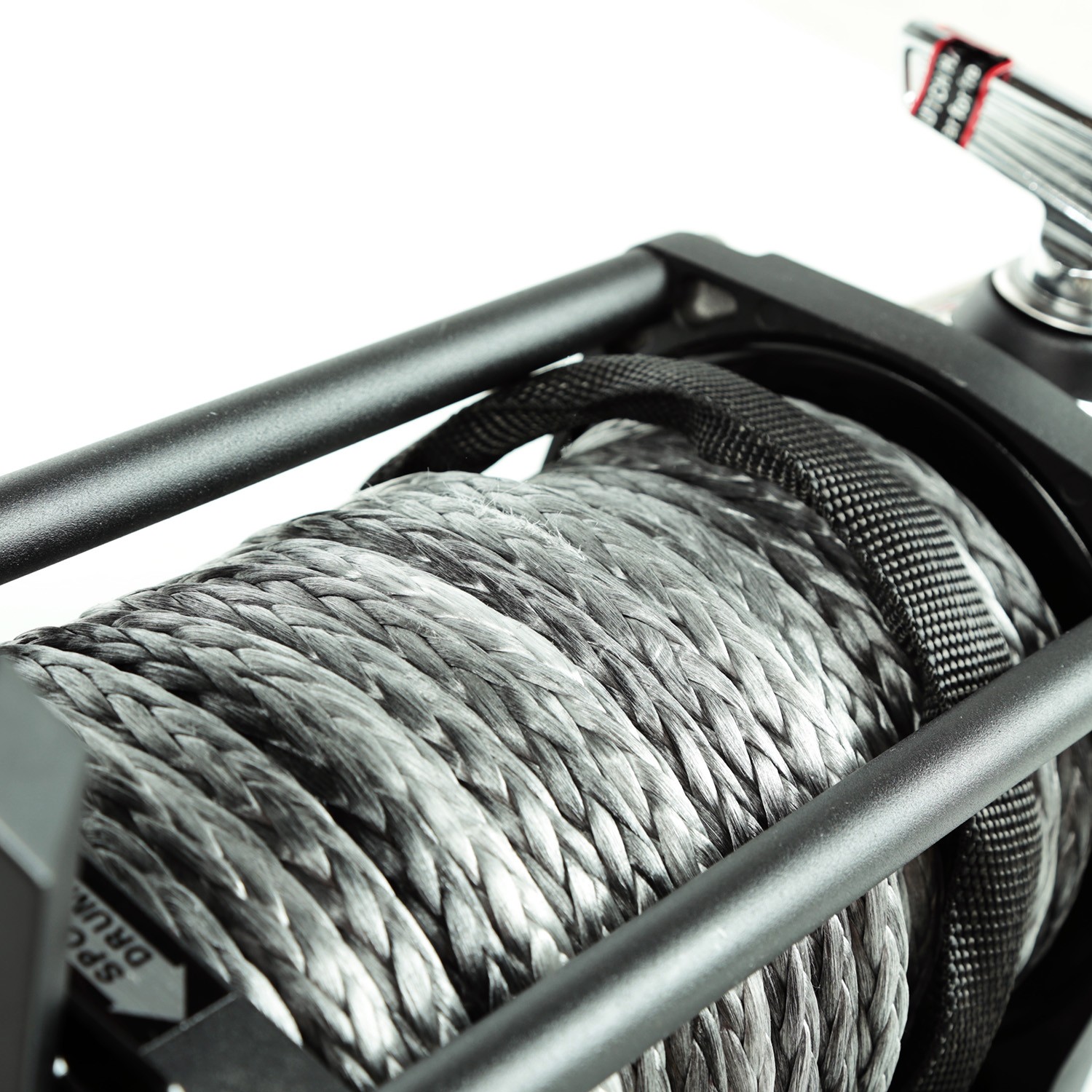

full-size vehicles during recovery operations. It is equipped with approximately 100 feet of synthetic rope,

which is both lightweight and safer compared to traditional steel cable. Synthetic rope reduces the risk of

dangerous recoil if it snaps and is easier to handle during use, especially in rugged terrain.

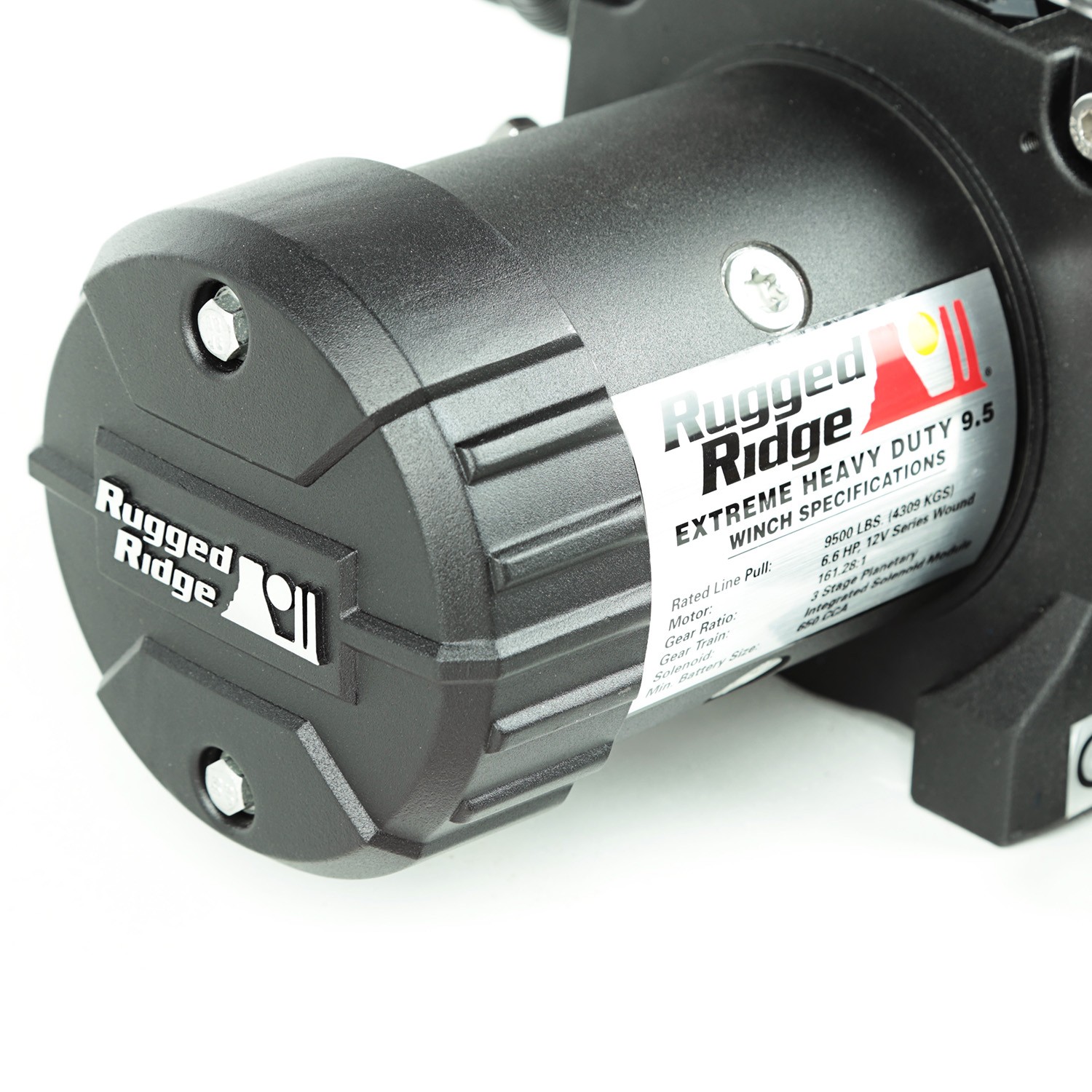

At the core of the winch is a durable 6.6 horsepower series-wound motor, engineered to deliver consistent

performance and long service life. This motor is paired with a robust three-stage planetary gearbox

featuring a gear ratio of approximately 172.8:1, ensuring efficient torque transfer and smooth operation

under heavy loads. (jeepey.com) The combination allows for reliable pulling power even in challenging recovery scenarios such as mud, sand, or steep inclines.

One of the standout features of the 15100.06 model

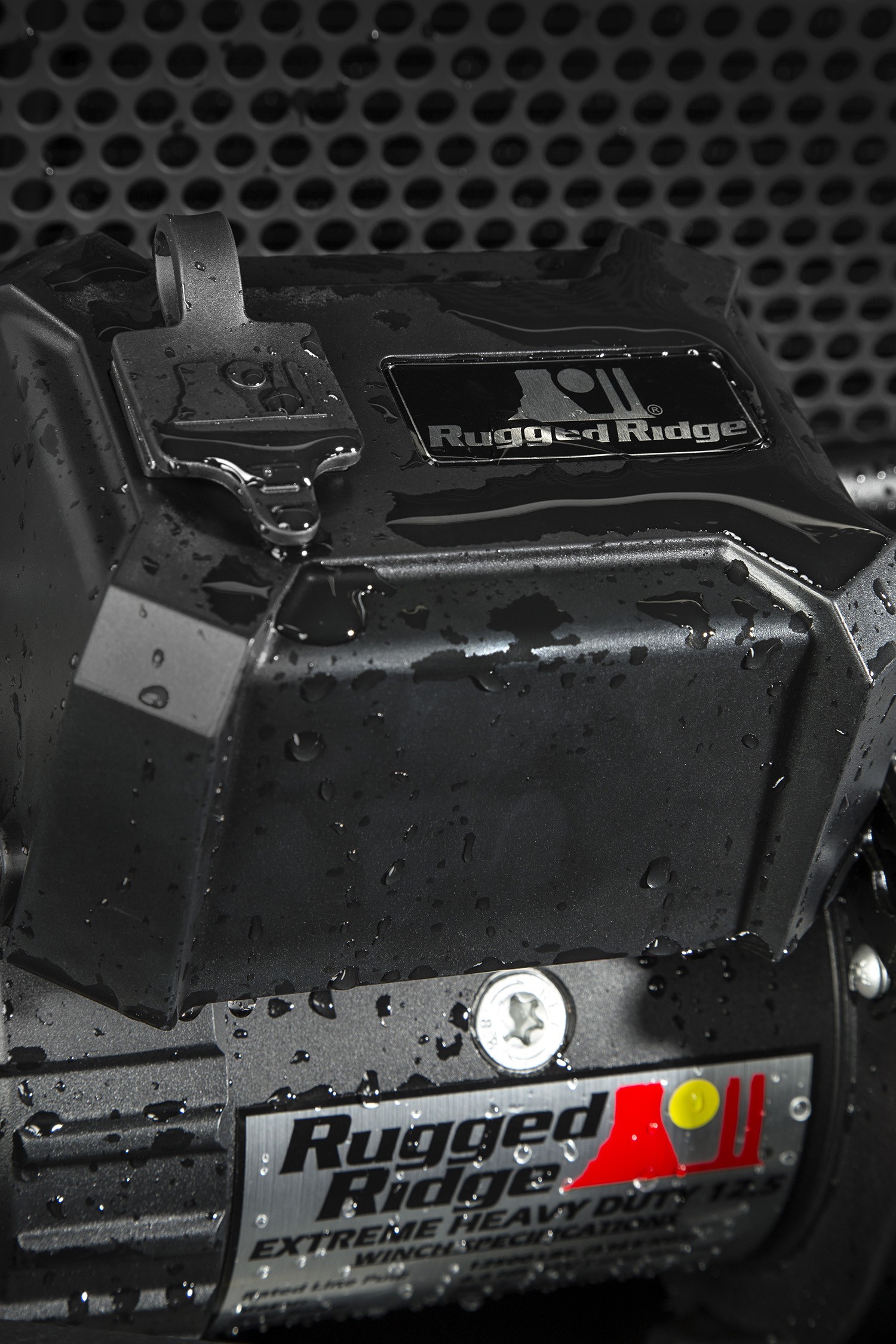

One of the standout features of the 15100.06 model is its IP67 waterproof rating. The motor, solenoid, and

gearbox are fully sealed to protect against water, dust, and debris, enabling dependable performance in

harsh weather conditions and wet environments.  This makes it particularly suitable for off-road

adventures involving river crossings or muddy trails.

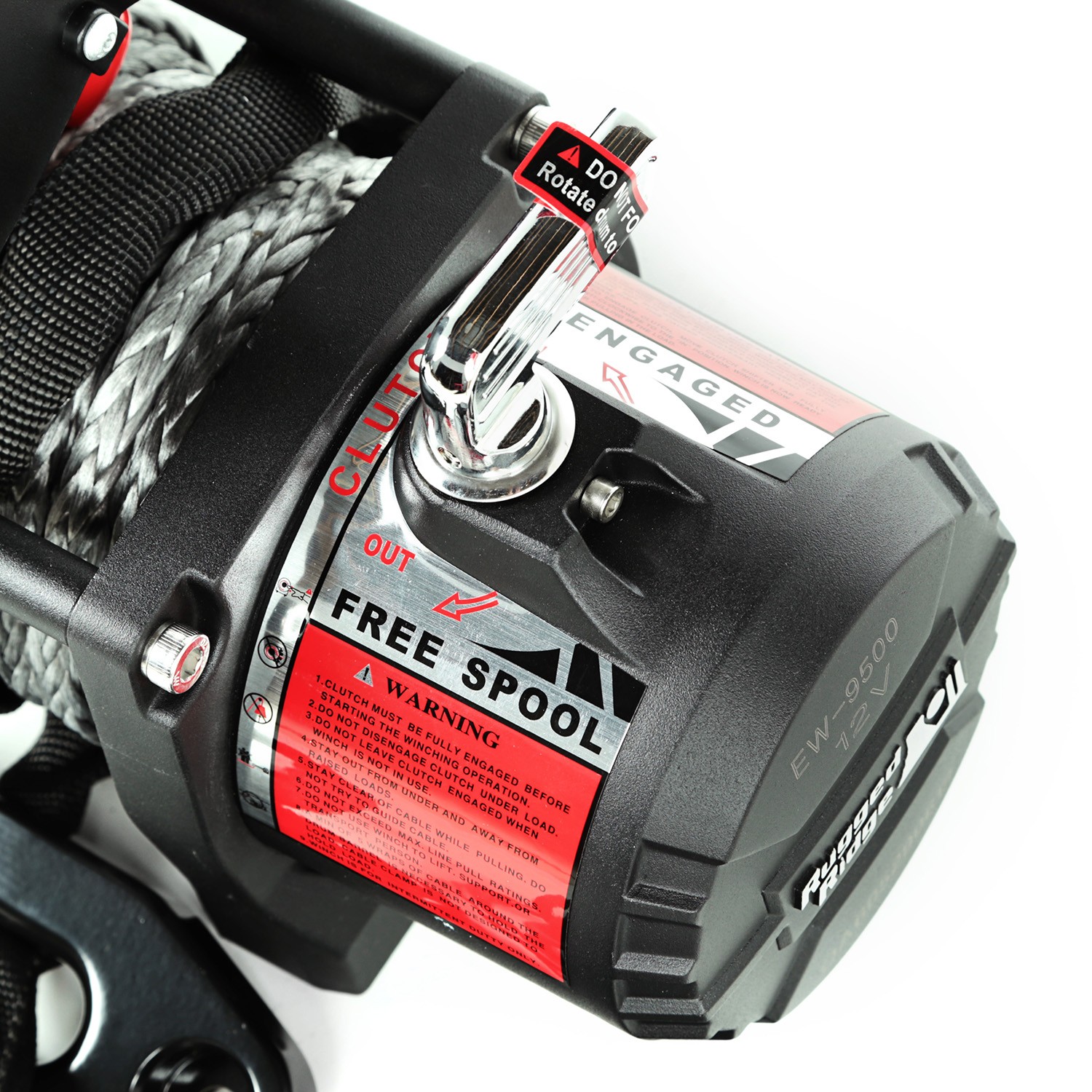

The winch also includes an automatic load-holding brake system integrated within the drum, providing

enhanced control and safety during operation. Additional components such as a durable aluminum hawse

fairlead, stainless steel hardware, and a powder-coated finish contribute to corrosion resistance and long-

term durability.

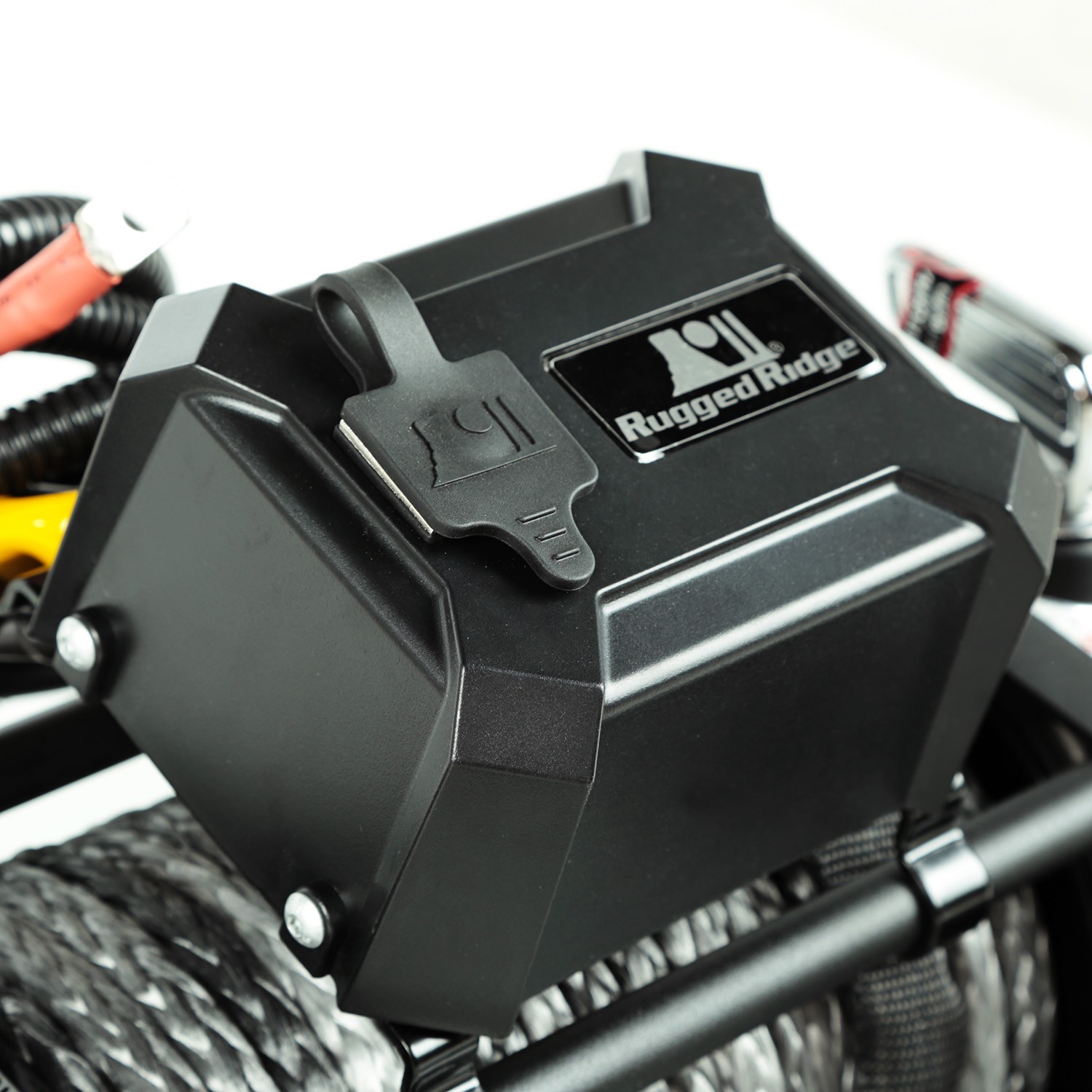

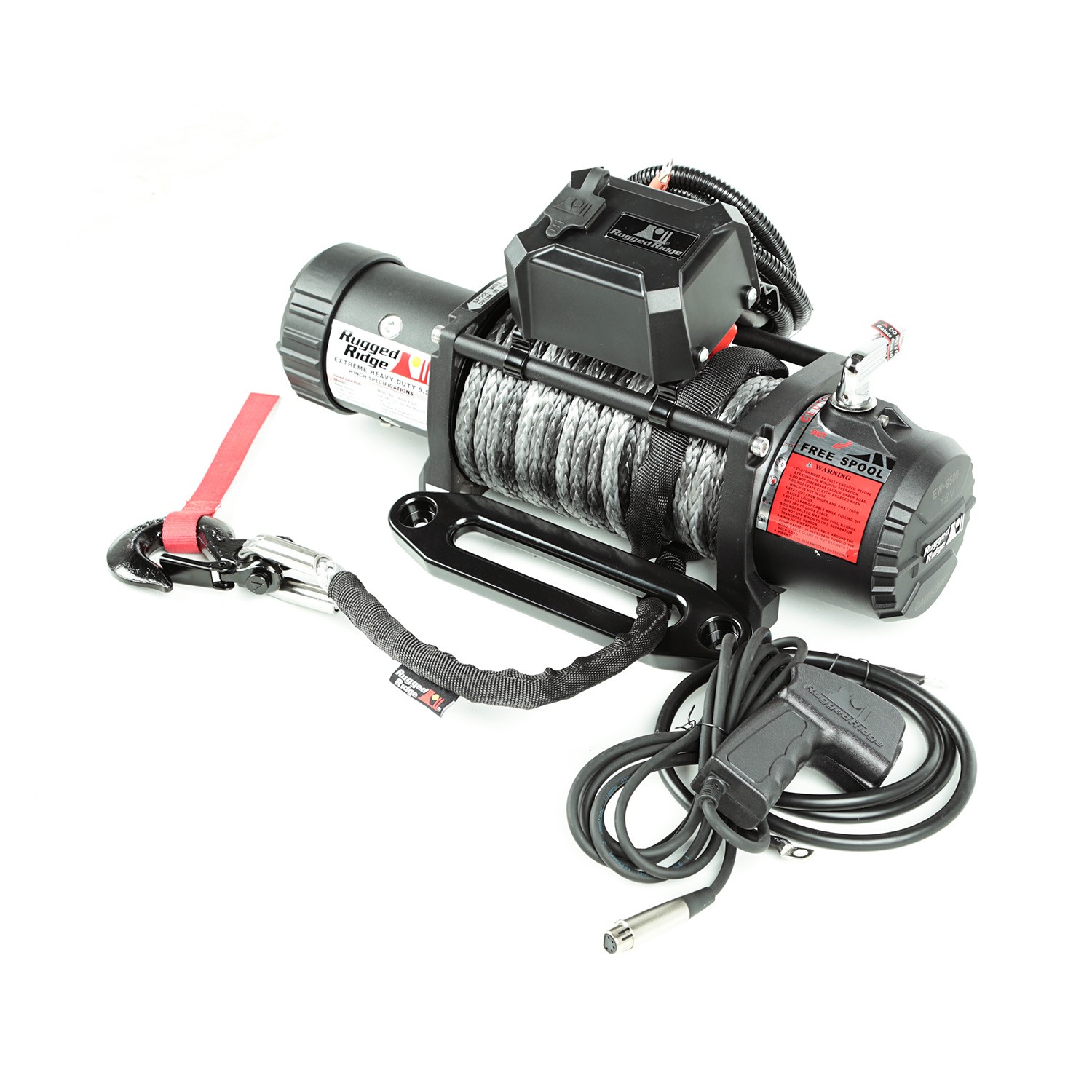

For user convenience, the winch comes with a 12-foot wired remote control and a versatile solenoid box

that can be mounted in multiple positions to suit different vehicle setups.  Overall, the 15100.06 winch

delivers a balanced combination of power, safety, and rugged construction, making it a dependable recovery solution for off-road applications.
