7″ LED ARB Intensity Solis Light Kit (SJB21EUX2)

Incorporating in-house engineered and designed
optics partnered with OSRAM LED technology
and styling updates, the ARB Intensity Solis has
pushed the limits of driving light technology once
again and produced a uniquely designed, feature
packed and highly capable driving light in small
version and ready for legal fitment & on road use
in European countries.
The ARB Intensity SolisTM 21 LED (7’’) Driving Lights
are offered in dedicated combination optic tuned
for on and off-road use. The lights are E-mark
approved (following UNECE R149 regulation).
All ARB Intensity lights are designed to maximise
the output in all driving conditions and provide
increased life expectancy of the light compared
with cheaper lighting options in the market.

Many months were spent by the engineers
designing and refining an optic that captures
the most amount of light, removes flat spots on
the optic face and controls the beam into the
right area to reduce stray light and maximise the
potential of each LED. A single ARB Intensity SolisTM 21 provides 620m
@ 1 Lux on setting #5 in off-road mode. The ARB
Intensity SolisTM 21 on setting #3 provides 426m @

1 lux with up to 40m spread from the vehicle in on-
road mode. In dual combo off-road configuration,

the distance down the road is a very impressive
877m @ 1 lux on setting #5 and dual combo
configuration on setting #3 on-road modes it’s a
competitive 603m @ 1 lux.
As well as distance, a warmer light colour helps to
reduce eye strain over long driving periods and
improves driver comfort while assisting to reduce
fatigue.

Features

• > 21 Osram LED (15x 4W + 6x 5W)
• > 50,000+ Hour LED life span
• > Input voltage – 10-30VDC
• > Raw lumens – 9133LM
• > Colour temperature – 5700 Kelvin
• > 9° full beam width
• > Operating temperature – -40°C to +65°C
• > Weight – 2.73kg
• > Light dimensions (single) – 192 x 190 x 114mm
• > Integrated thermal management
• > Pressure equalisation breather
• > High pressure die-cast aluminium body and
• mount with variable positions
• > Virtually unbreakable polycarbonate lens
• > UV stable moulded polycarbonate lens cover
• > Durable UV stable powder coat
• > High power Amphenol AT06 waterproof
• connector
• > Over Voltage Protection to 30VDC
• > Protected against RFI/EMC interference
• > Dust and waterproof to IP68
• > Tested to MIL810-STDG for vibration
• > RoHS compliant
• > CE compliant
• > UNECE R10 compliant
• > For Intensity Level #3 (UNECE R149 compliant)
• – Power draw 36W
• – Current draw 2.7 Amps @ 13.2V
• – Effective Lumens 2,700LM
• – Distance @ 1Lux – 426m (single light)
• > For Intensity Level #5
• – Power draw 82W
• – Current draw 6.2 Amps @ 13.2V
• – Effective Lumens 6,000LM
• – Distance @ 1Lux – 620m (single light)
• > Warranty 3 years – Global warranty

Included

• > 2 x Lights & 2 x clear covers
• > 2 x Mounting bracket & mounting hardware kit

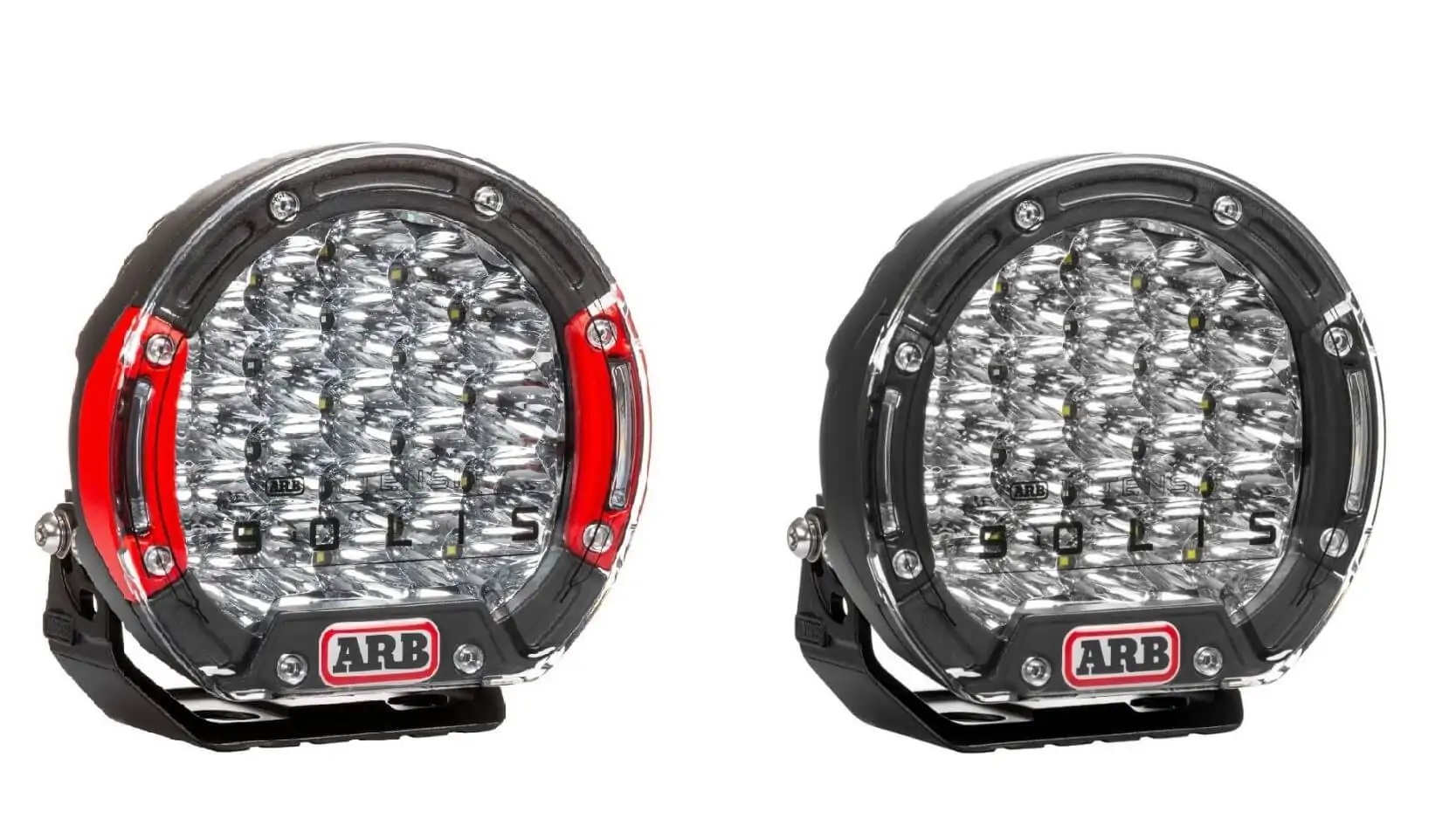

• > UV-resistant interchangeable red or black
• bezels to suit
• > Wiring loom with dimmer (touchpad)

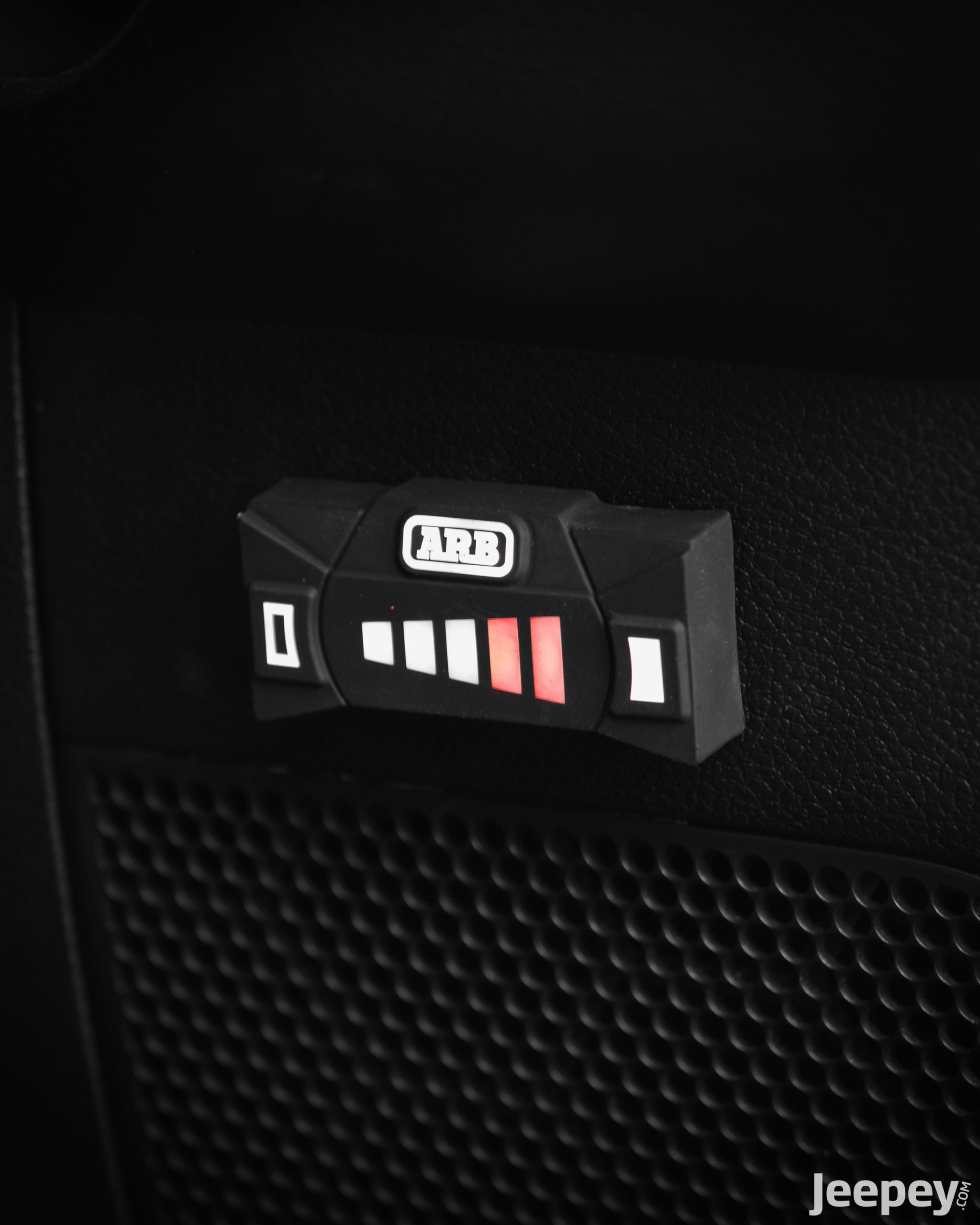

Touchpad Specifications

• > Up & Down Button
• > 5 pre-set percentage changes – 5, 25 & 50%
• and 75 & 100% – off-road mode only
• > Silicone sleeved for durability and protection
• > Multi-coloured indicators – white/red
• > Intuitive control and touch – no eyes off the road
• > 58mm (L) x 10mm (D) x 25mm
